4_CHANNEL_COMMUTATOR

Published:2009/7/1 21:16:00 Author:May | From:SeekIC

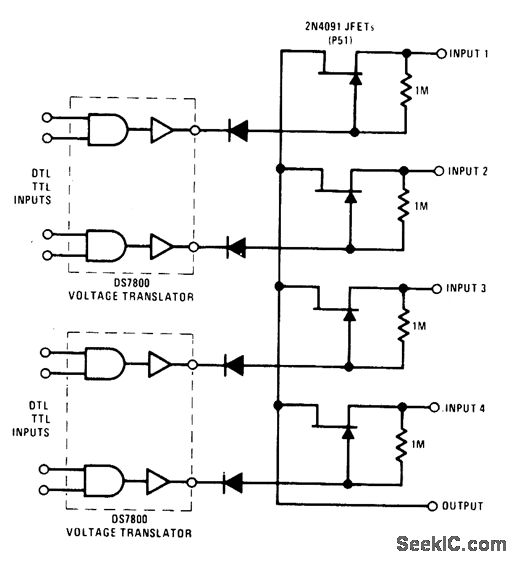

This 4-channel commutator used the 2N4091 to achieve low channel on resistance (<30 ohm) and low off current leakage. The DS7800 voltage translator is a monolithic device that provides from 10 V to -20 V gate drive to the JFETs while at the same time providing DTL/TTL logic compatibility.
