20kbits optical receiving circuit

Published:2011/4/1 21:56:00 Author:may | Keyword: 20kbits, optical receiving | From:SeekIC

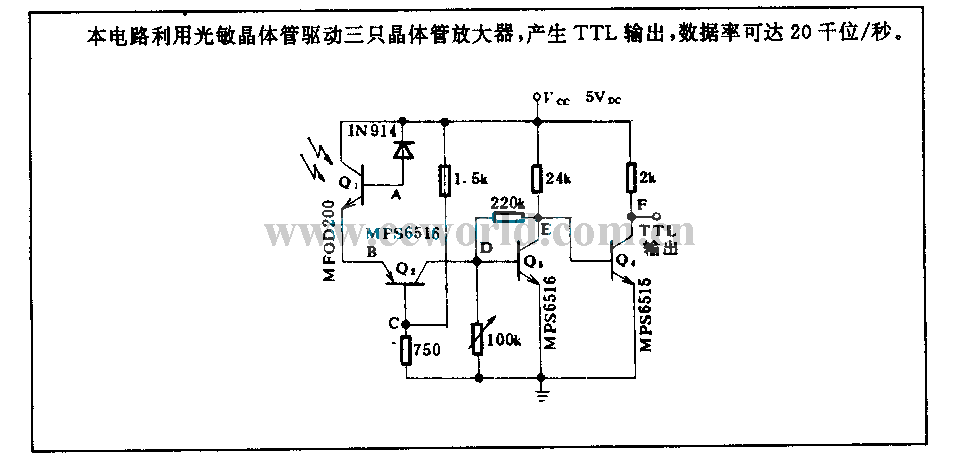

This circuit adopts optical transistor to drive three crystal amplifiers. It can generate TTL output. Its data rate can reach 20kbits/s.
