118_TO_136_MHz_AIRCRAFT_RECEIVER

Published:2009/6/24 3:50:00 Author:May | From:SeekIC

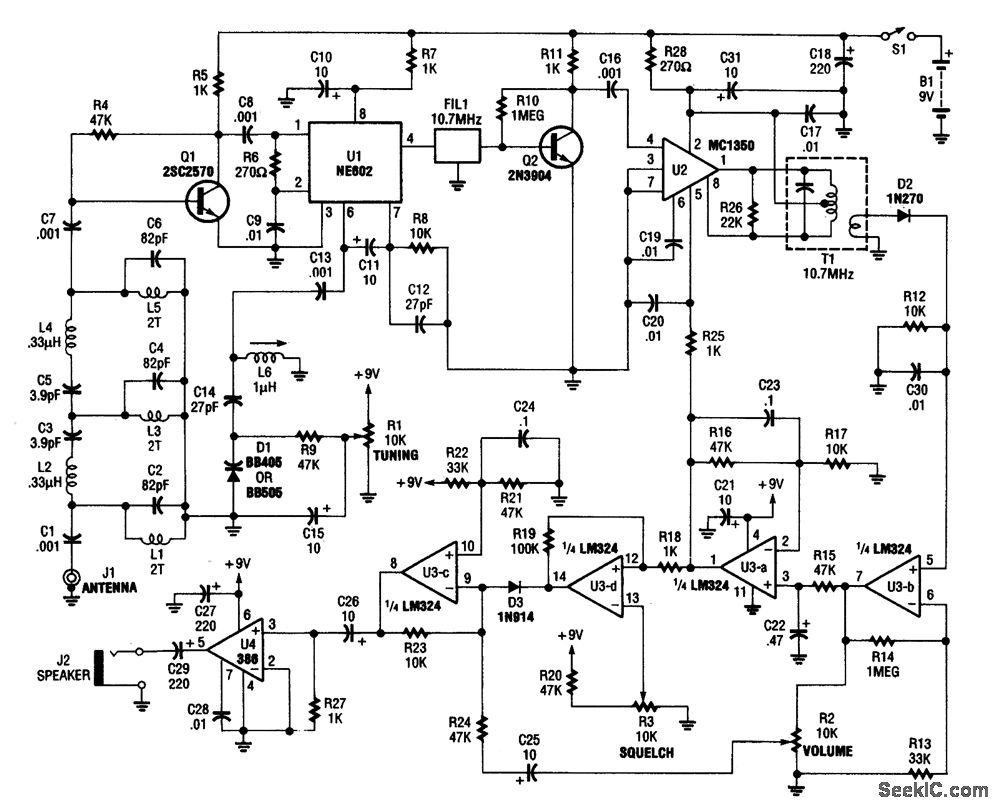

This recelver covers the 118-to 136-MHz AM aviation band It has a 10 7-MHz IF amplifier． L1，L3，and L5 are 1 1/2 turns of#24wire FIL1 is a 10 7-MHz ceramic filter．IF bandwidth will be about 250 kHz.
