10_W_CW_TRANSCEIVER

Published:2009/7/12 22:59:00 Author:May | From:SeekIC

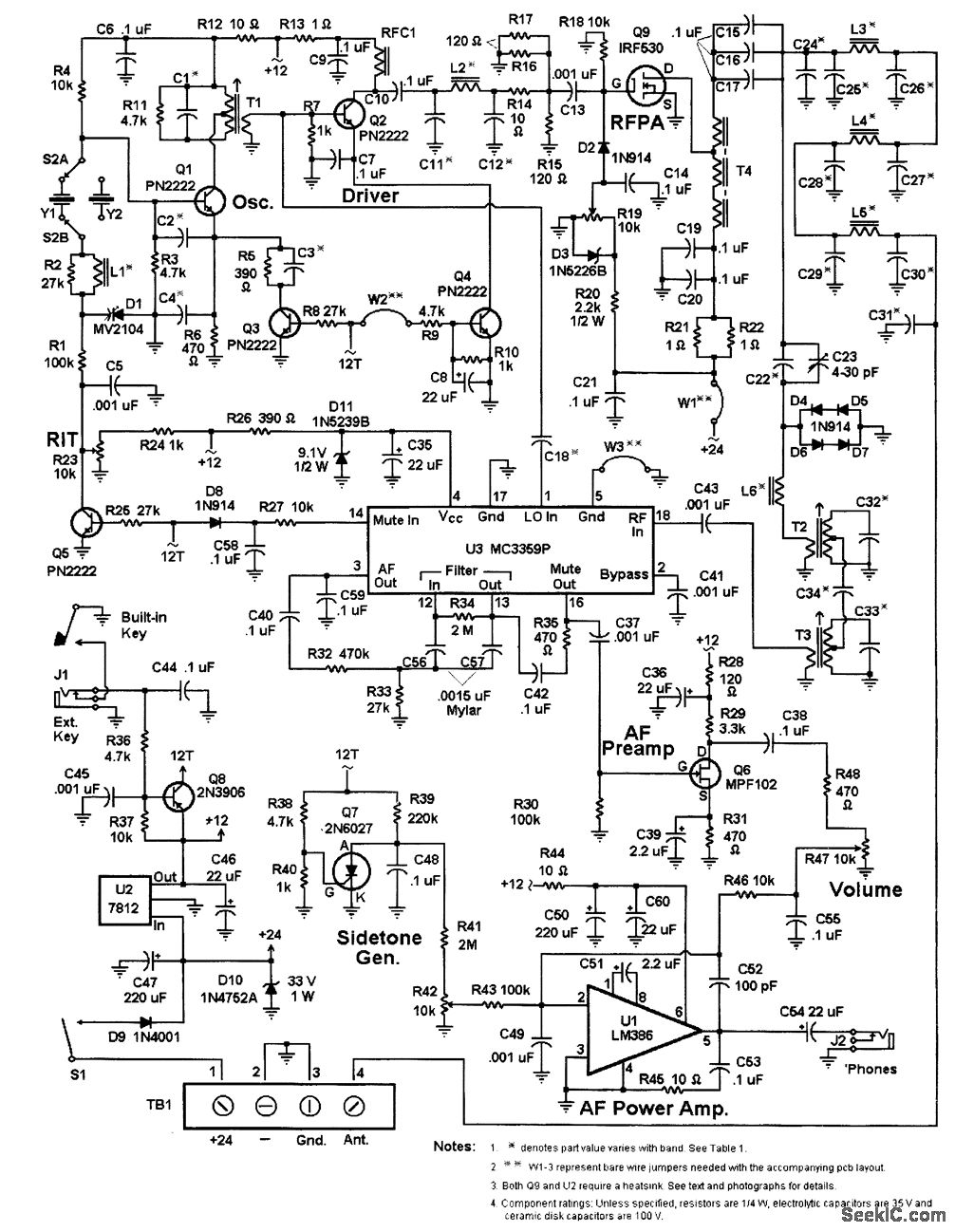

This transceiver can ioe operated on the 80-. 40-. or 30-m CW ham bands. A crystal oscillator drives a driver and RE PA delivering about 10 W output. The receiver uses an MC3359 IC and is fed LO from the crystal oscillator used for transmitting, and a varactor diode is used for incremental tuning (RIT) of the receiver. The unit also has a CW sidetone generator for ease of monitoring the transmitted CW signal. The power supply is 18 to 28 Vdc at 1 A.
