100_kHz_FULL_WAVE_RECTIFIER

Published:2009/7/6 6:19:00 Author:May | From:SeekIC

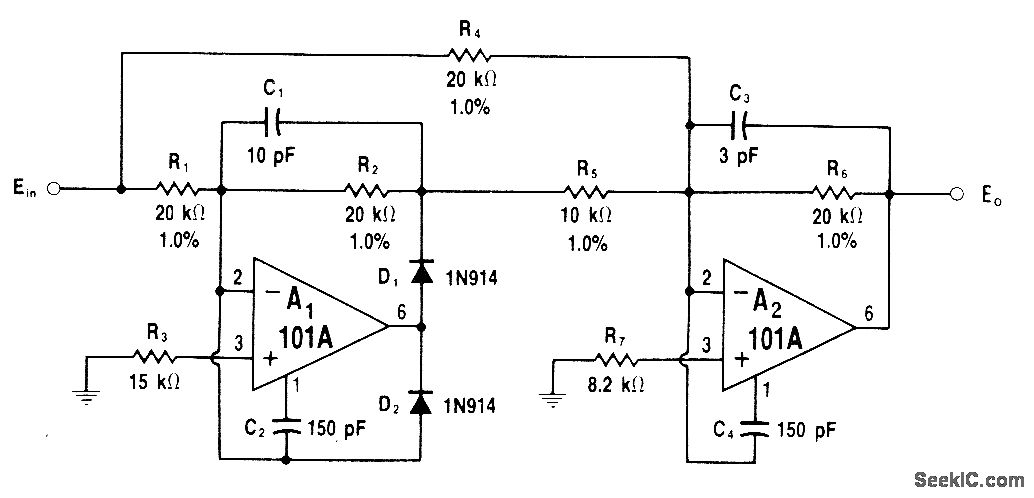

Feed-for-ward connection of opamps gives high-speed full-wave rectification of signals up to 100 kHz for measurement and analysis.-W. G. Jung, IC Op-Amp Cookbook, Howard W. Sams, Indianapolis, IN, 1974, p 193-194.
