0_10VDC_TO_0_10_kHz

Published:2009/7/7 5:03:00 Author:May | From:SeekIC

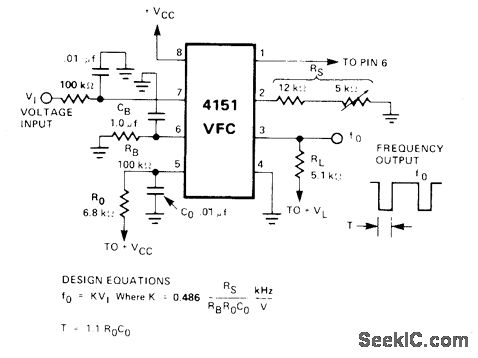

Single-supply voltage-to-frequency convener produces square-wave output at frequency varying linearly with input voltage. Linearity error is typically only 1%. For values shown, response time for step change of input from 0 to +10V is 135 ms. Uses Raytheon 4151 converter. Supply can be 15 V.- Linear Integrated Circuit Data Book, Raytheon Semi-conductor Division, Mountain View, CA, 1978, p7-38.
