monostable trigger circuit formed by gate circuit

Published:2011/7/22 3:01:00 Author:chopper | Keyword: monostable trigger, gate circuit | From:SeekIC

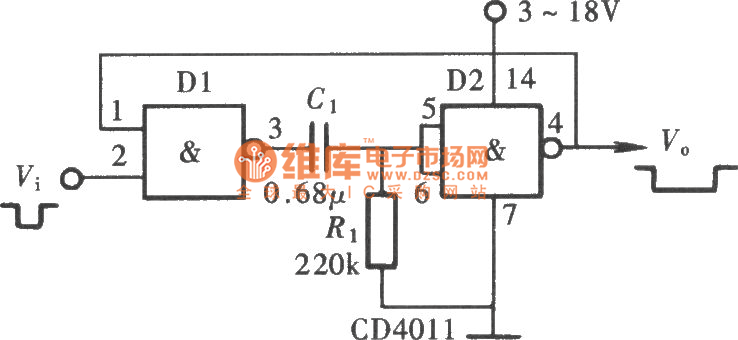

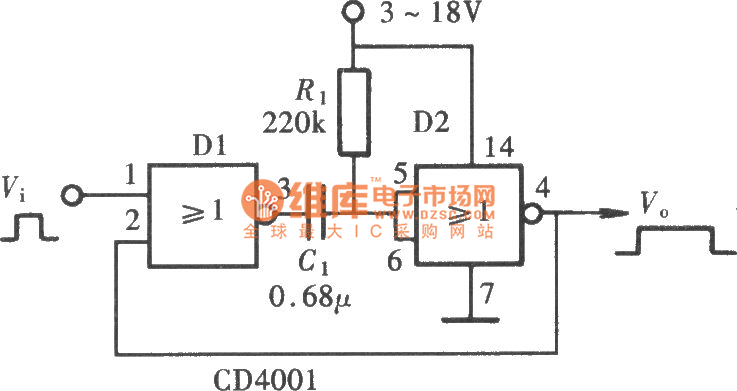

The CMOSnand-gate ornor-gate can form a monostable trigger, and this monostable trigger is used for the delay,broadening and shaping of the pulse signal extensively in the circuit.The main principle of monostable trigger with a gate circuit is to use the charge and discharge actions of the threshold level of gate input end and the component RC added to the gate circuit.Bothnand-gate or logic gate can form the monostable trigger,but their trigger modes are different,and the output logic levels are also different .
