l_KC_SCALER

Published:2009/7/14 1:37:00 Author:May | From:SeekIC

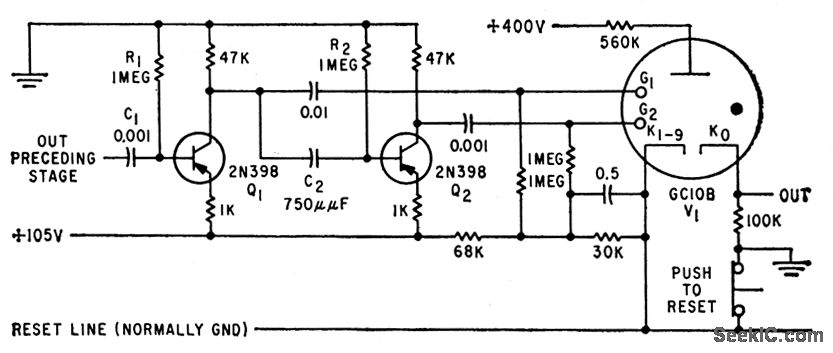

Glow-tube counter provides driving pulses of about l00 v, using two amplifiers in cascade, both saturated when no signals are present.-H. A. Kampf, Increasing Counting System Reliability, Electronics, 32:37, p 112-113.
