lOO_KG_CLOCK_FOR_COUNTER

Published:2009/7/10 23:56:00 Author:May | From:SeekIC

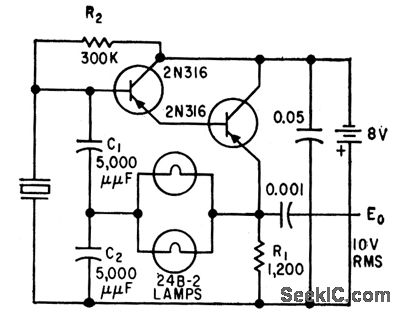

Stable fixed-frequency Pierce oscillator becomes transistorized Clapp oscillator when crystcd is replaced by high-Q L-C tuner.-W Fryer,How to Design Low Cost Audio Filters,Elecltonics,32:15,p68-70．
