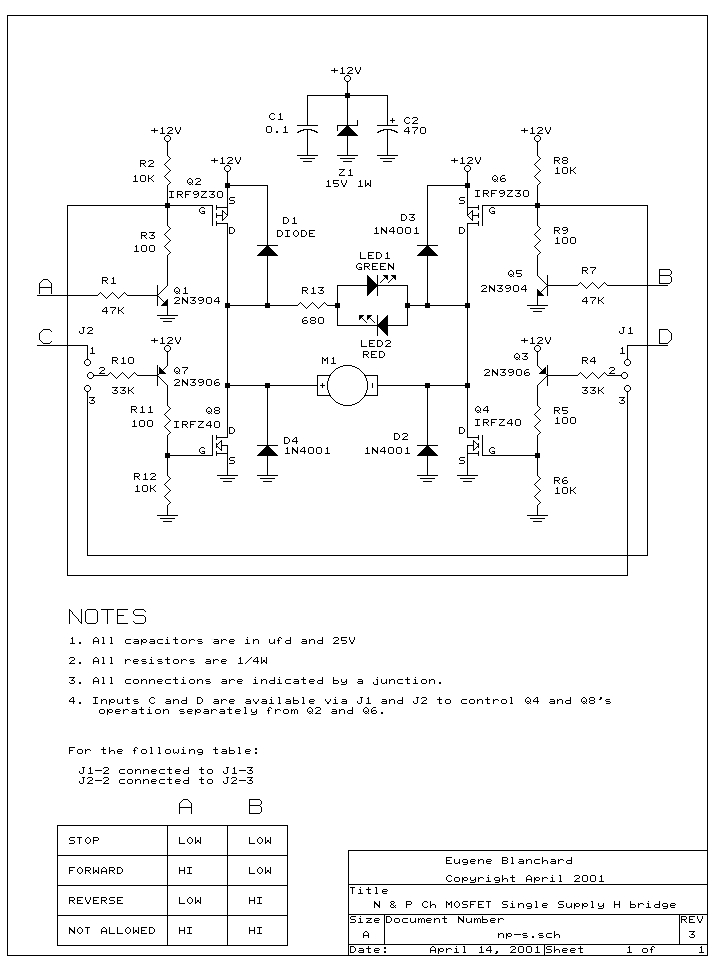

better MOSFET H Bridge Schematic

Published:2013/7/3 2:50:00 Author:muriel | Keyword: better MOSFET , H Bridge Schematic | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Basic_Circuit/better_MOSFET_H_Bridge_Schematic.html

Print this Page | Comments | Reading(3)
