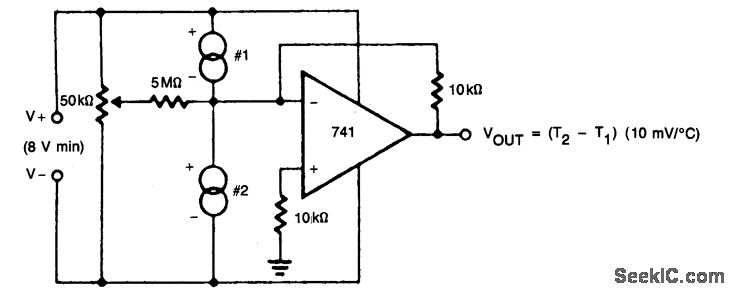

_DIFFERENTIAL_THERMOMETER

Published:2009/7/7 3:21:00 Author:May | From:SeekIC

The 50 k ohm pot trims offsets in the devices whether internal or external, so it can be used to set the size of the difference interval. This also makes it useful for liquid-level detection (where there will be a measurable temperature difference).
