_15_V_WITH_FEEDBACK

Published:2009/7/6 3:10:00 Author:May | From:SeekIC

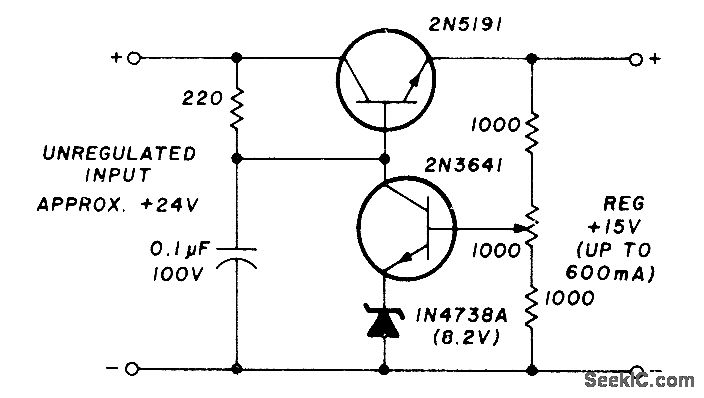

Fraction of output voltage is fed back to base of 2N3641 regulator transistor. Difference between this voltage and zener diode voltage is amplified to control base of 2N5191 series transistor.-H. Olson, Powet-Supply Servicing, Ham Radio, Nov. 1976, p 44-50.
