_10V_SWITCHING

Published:2009/7/14 3:03:00 Author:May | From:SeekIC

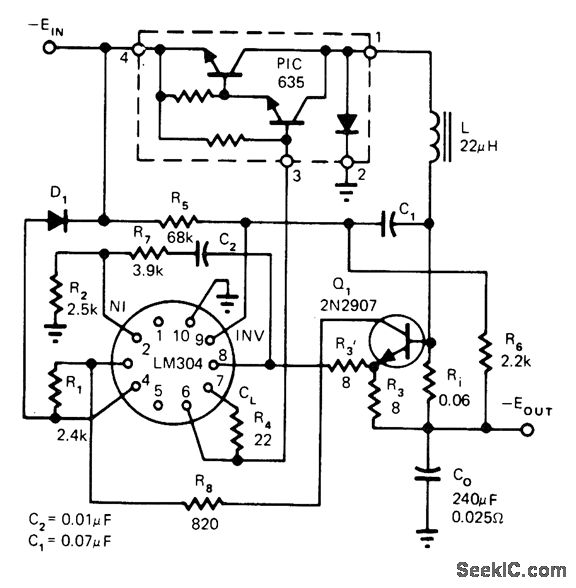

Uses LM304 regulator and Unitrode hybrid power switch in PIC600 series to provide output of 10 A. R1 and R2 determine reference voltage. Current limiting is achieved by reducing reference voltage to ground instead of turning off base drive to power output switch. Article covers operating theory.-L. Dixon and R. Patel, Designers' Guide to: Switching Regulators, EDN Magazine, Oct. 20, 1974, p 53-59.
