YN5048 Infrared transmitter IC typical application circuit diagram

Published:2011/9/27 21:27:00 Author:Rebekka | Keyword: Infrared transmitter IC , typical application | From:SeekIC

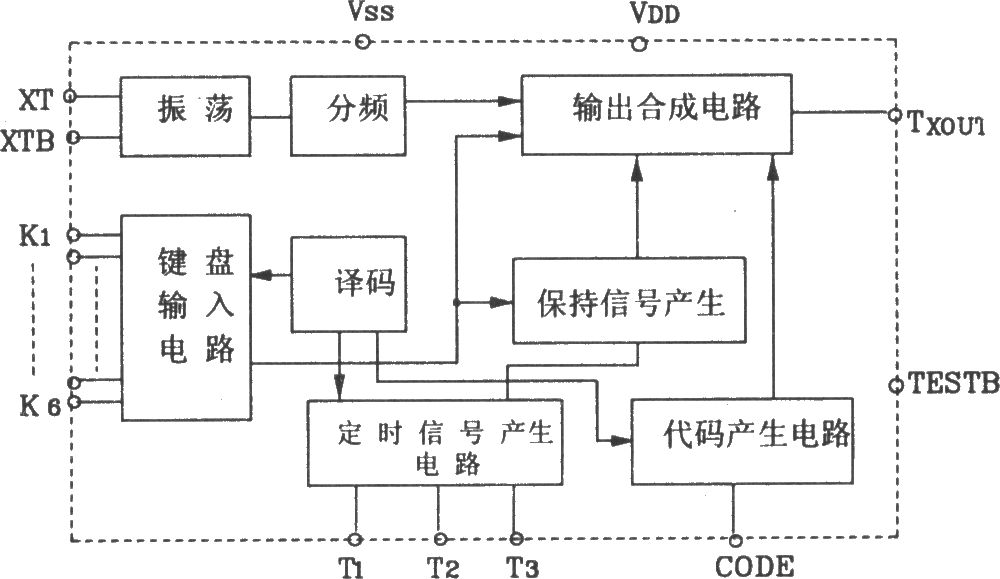

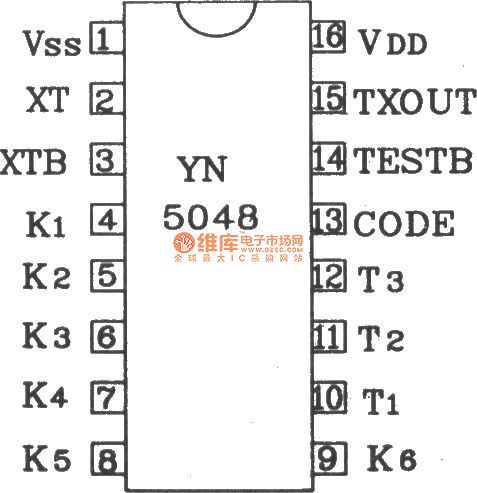

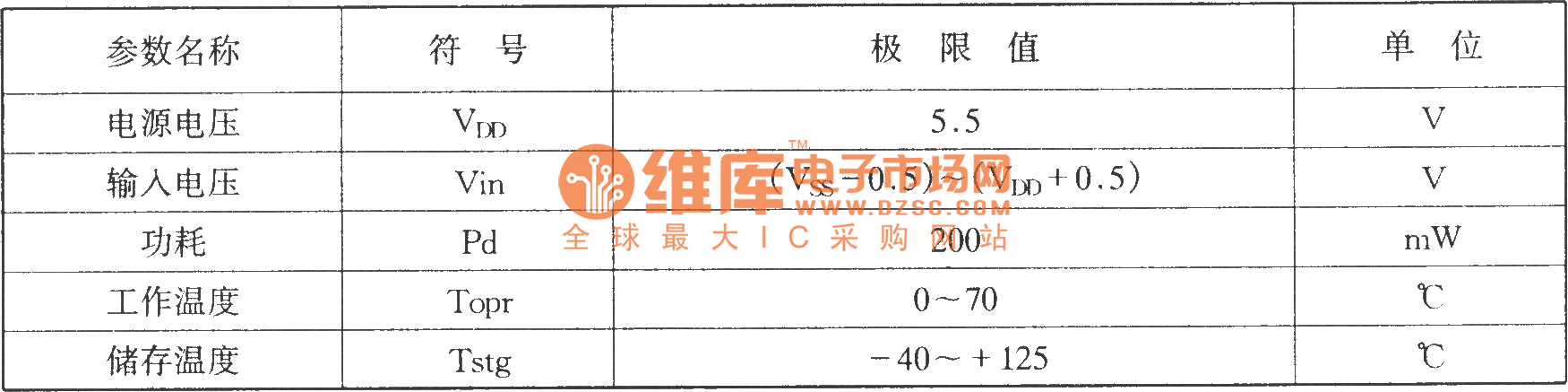

The internal YN5048 infrared remote control transmitter uses COMS structure, operating voltage range iswide (1.5 ~ 5.0V), and it is mainly used in televisions, stereos, video recorders and a variety of remote control circuits. The similar models areBL9148, TC9148. YN5048 shape pin map. YN5048 internal block diagram. YN5048 infrared remote control transmitter limit operating parameters. Typical application circuit of YN5048 infrared emission IC.
