WlEN_BRIDGE_2_W

Published:2009/7/5 23:57:00 Author:May | From:SeekIC

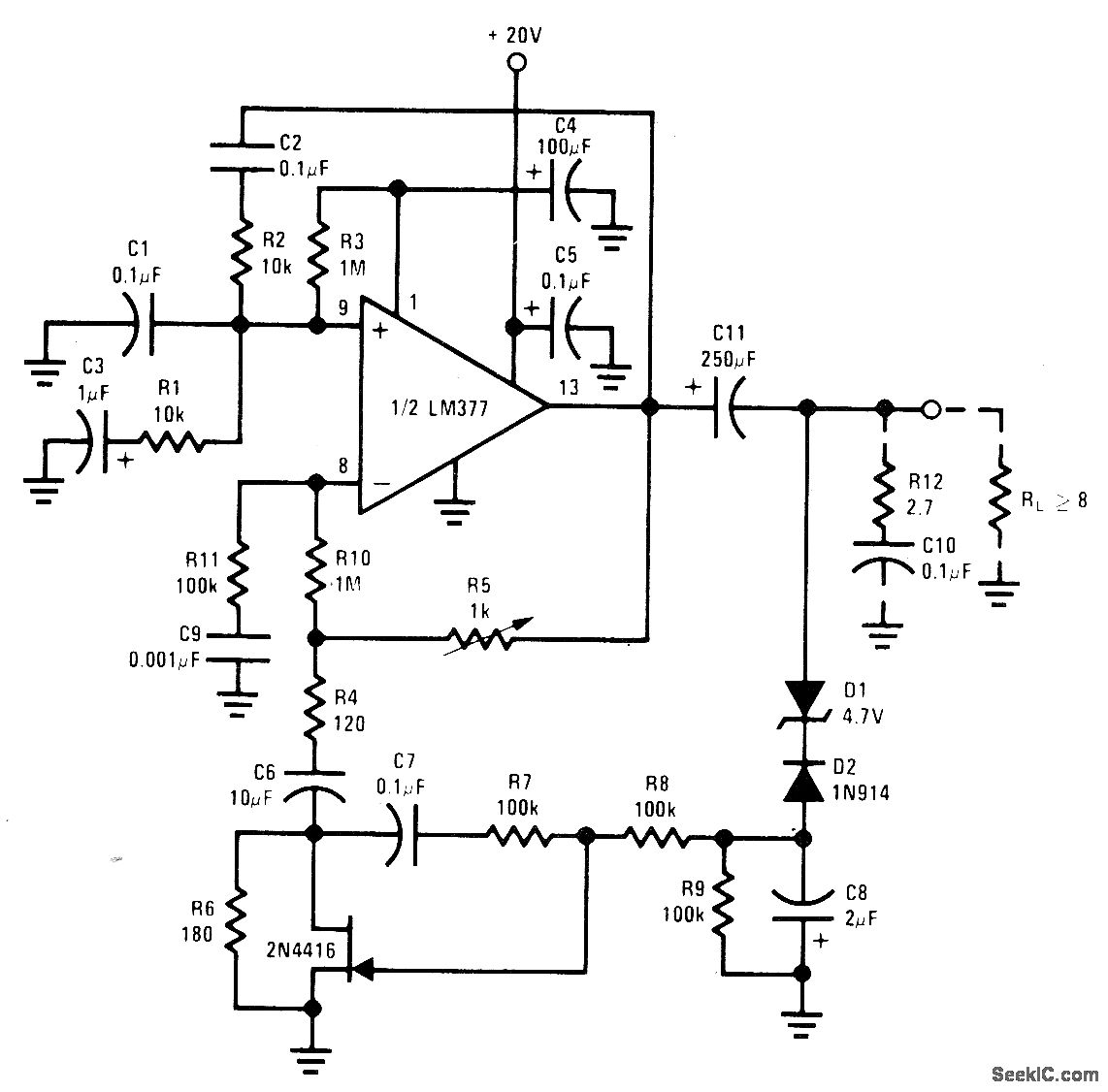

Uses haff of LM377 IC connected as oscillator, with FET amplitude stabiIization in negative feedback path. Total harmonic distortion is under 1% up to 10 kHz. With values shown, maximum output is 5.3 VRMS at 60 Hz. R12 and C10 are added if necessary to prevent high-frequency instability.- Audio Handbook, National Semiconductor. Santa Clara. CA. 1977. p 4.8-4-20.
