WRONG_POLARITY_PROTECTION

Published:2009/7/15 22:38:00 Author:Jessie | From:SeekIC

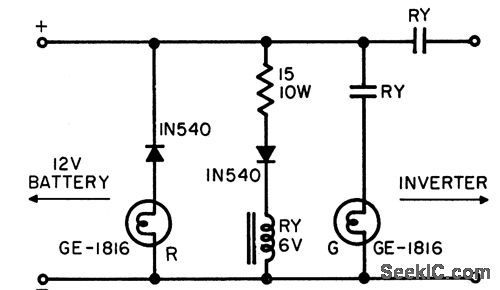

Provides built-in protection of transistors in inverter from incorrect polarity of connection to 12-v battery. Used between inverter and battery. Green bulb G lights and relay operates for correct polarity. With wrong polarity, relay does not operate and red bulb R comes on to indicate error.-J. J. Pirch, Inverter Control, EEE, 11:3, p 44.
