WIDE_TEMPERATURE_RANGE

Published:2009/7/14 20:55:00 Author:May | From:SeekIC

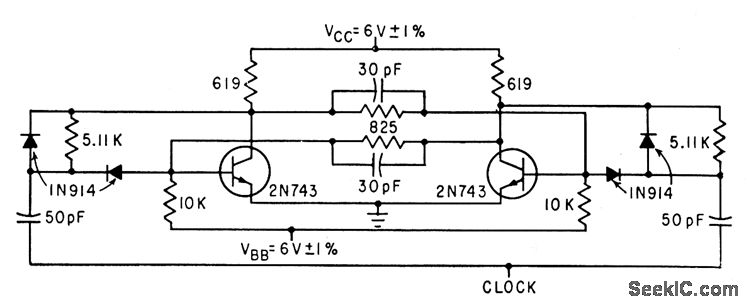

Gives 10-Mc op eration from -55℃ to +125℃, with 3.v dock trigger. Addition of emitter-follower will improve wove form and extend operation to +150℃.-D. Hall, Using Epitaxial Transistors in Switching and R-F Circuits, Electronics, 34:13, p 52-53.
