WIDE_MARK_SPACE_RATIO

Published:2009/7/16 3:49:00 Author:Jessie | From:SeekIC

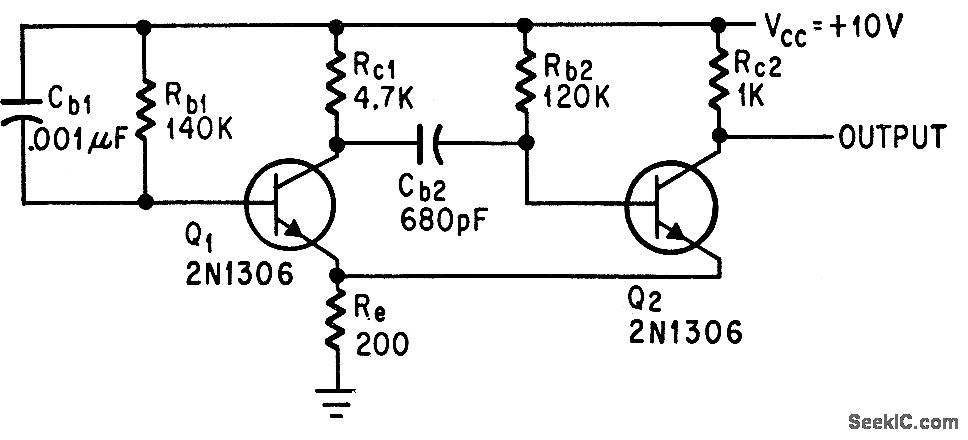

Pulse width and interpulse period are independently adjustable from tenths of microsecond to several seconds by varying Cb1-Rb1.-S. Tesic, Pulses with Variable Mark-to-Space-Ratio, Electronics, 38:14, p 78-79.
