WIDEBAND_SIGNAL_SPLITTER

Published:2009/7/10 2:33:00 Author:May | From:SeekIC

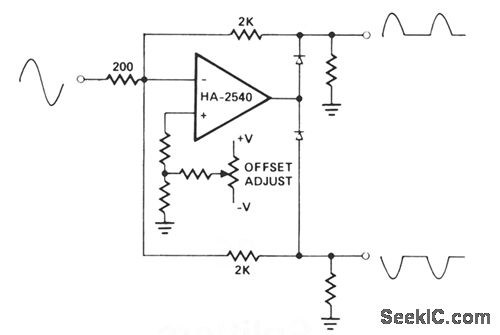

With one HA-2539 or HA-2540 and two low-capacitance switching diodes, signals exceeding 10 MHz can be separated. This circuit is most useful for full-wave rectification, AM detection, or sync generation.
