WHO_IS_FIRST

Published:2009/7/1 20:35:00 Author:May | From:SeekIC

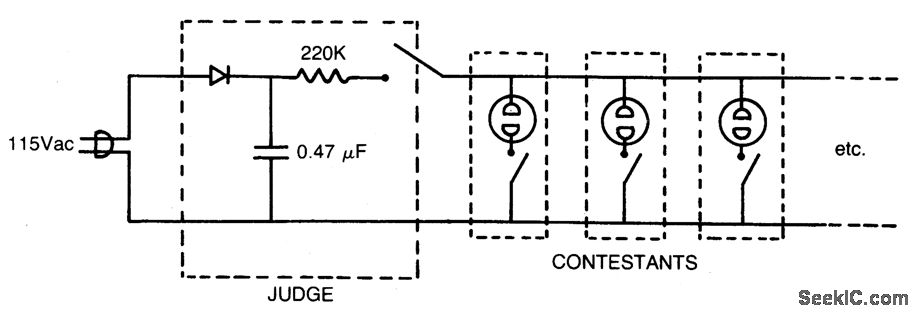

Circuit Notes Here is a circuit for any question-and-answer party game. The first button pushed ionizes the neon bulb dropping the dc voltage on the parallel neons (the other contestants) below the ionization level: determining unequivocally the first person to press the button.
