Versatile Discrete Monostable Multivibrator

Published:2013/3/28 4:15:00 Author:Ecco | Keyword: Versatile Discrete, Monostable Multivibrator | From:SeekIC

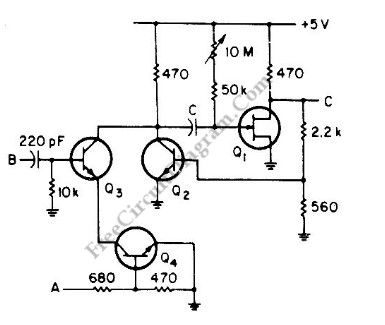

This is a versatile discrete monostable circuit. This circuit consist of 2N3819 JFET and 2N3704 transistors. This monostable multivibrator circuit has additional input to enable or inhibit the function at any time without causing output pulse. The input of this circuit accept a standard digital IC voltage levels. Here is the schematic diagram of the circuit:
