Valve open and close control circuit

Published:2011/9/14 7:57:00 Author:nelly | Keyword: Valve, open and close, control | From:SeekIC

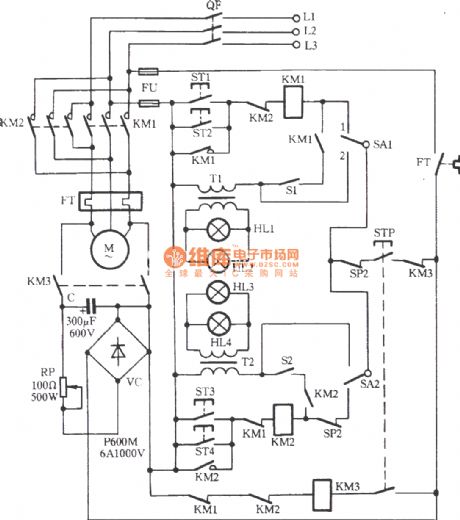

The circuit shown in the picture is powered by the motor and driven by the machine， thus the open and close of the valve can be implemented.
