V_F_AND_F_V

Published:2009/7/2 3:15:00 Author:May | From:SeekIC

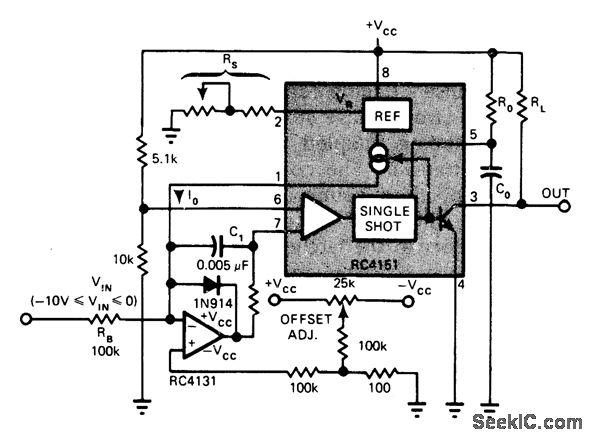

Although basedon Raytheon 4151 IC voltage-to-frequency converter,circuit is readily adapted to other modern V/F converters now costing under $10 each With values shown, input of to－10 VDC provides proportional frequency change from0 to 10 kHz at output. Design equations are given. Article also covers F/V operation of same IC for demodulating FSK data.—T. Gate, IC V/F Converters Readily Handle Other Functions Such as F/V, A/D, EDN Magazine, Jan. 5, 1977, p 82-86.
