VS1001K MPS decoding integrated circuit

Published:2011/7/13 19:41:00 Author:leo | Keyword: MPS decoding integrated circuit, VLSI Solution | From:SeekIC

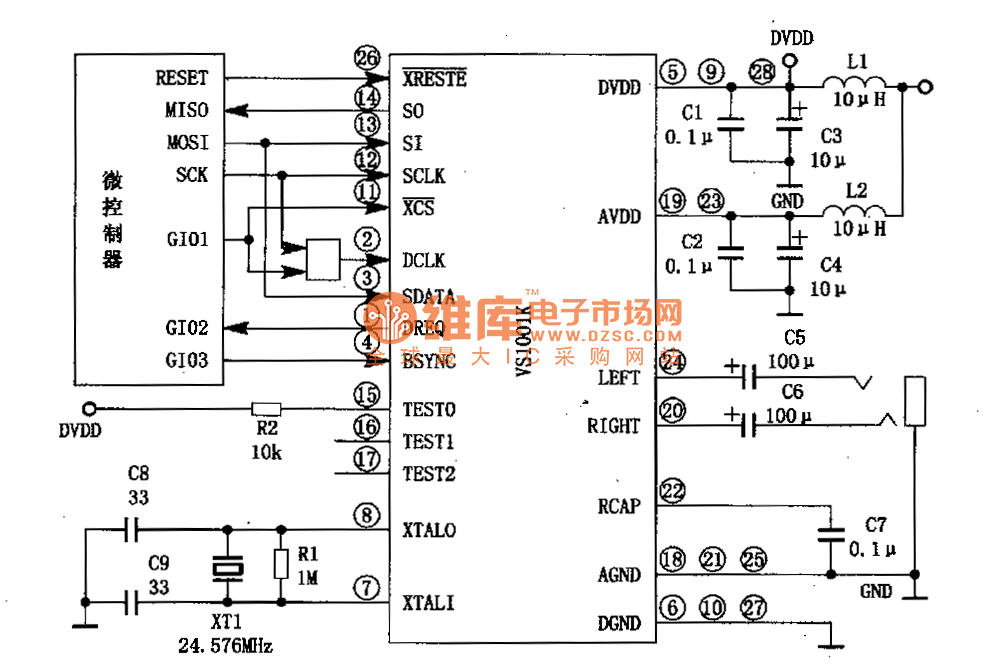

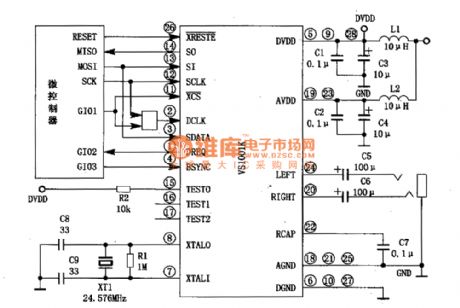

VS100K is a new type of MPS decoding integrated circuit made by VLSI Solution, which is widely used in all kinds of MPS players. Function Features:The integrated circuit VS1001K contains stereo analog converter DAC and earphone driving circuit. It supports PCM data input and has VS-DSP processor as well as ROM and RAM. Besides, it has constant connecting data interfaces as the picture shows. Pin Function:It adopts 28-pin SOIC dual-line and 49-pin BGA package. All information is shown in the picture.
