VOLTAGE_TO_TIME_CONVERTER

Published:2009/7/14 3:16:00 Author:May | From:SeekIC

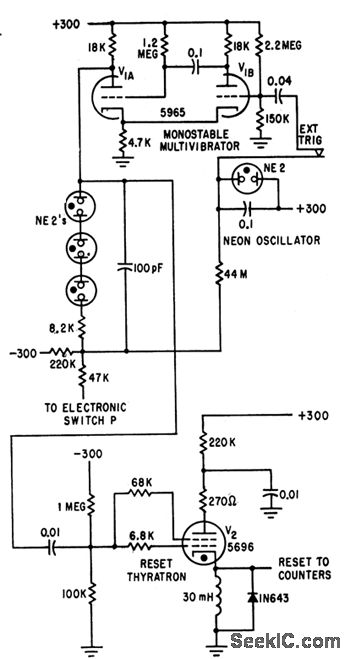

Produces output pulse whose width is accurately proportional to unknown input voltage. Pulses are then used to gate clock pulses into digital counters for voltage readout. Conversion occurs each time converter is switched on by monostable mvbr. Thyratron resets counters after each conversion.-B. Bcrker and M. McMahon, Digital Voltmeter Employs Voltage-To-Time Converter, Electronics, 34:18, p 67-69.
