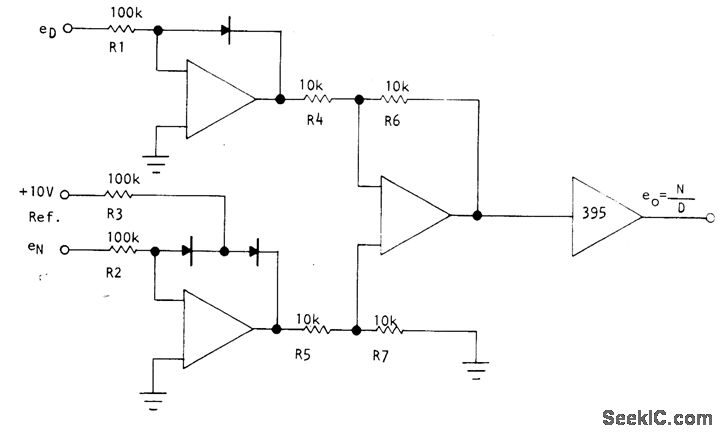

VARIABLE_TRANSCONDUCTANCE_DIVIDER

Published:2009/7/14 2:55:00 Author:May | From:SeekIC

Practical analog divider follows ideal division equation over typical 20:1 range of reference current and operates in two quadrants. Circuit is analyzed in terms of logarithmic behavior of its elements. Bandwidths up to 5 MHz can be achieved. Article gives design equations.-L.Counts and D. Sheingold, Analog Dividers: What Choice Do You Have?, EDN Magazine, May 5, 1974, p 55-61.
