VARIABLE_PULSE_WIDTH

Published:2009/7/1 5:36:00 Author:May | From:SeekIC

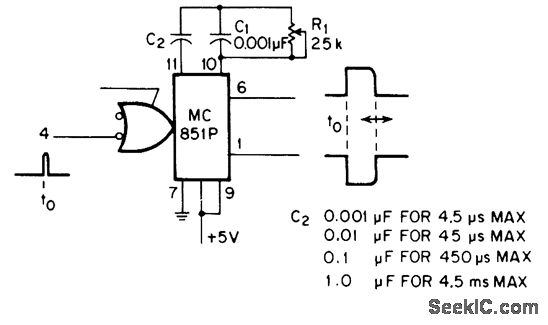

R1 and C2 together provide wide range of pulse widths from Motorola MC851P mono. Rise and fall times of complementary output pulses are better than 100 μs. With only four switched capacitors in combination whh R1, pulse widths can be varied between maximum of 4.5 ms and minimum well under 4.5 μs.-C. W. Stoops, Wide-Range Variable Pulse-Width Monostable, EEE Maga-zine,.Dec. 1970, p 56.
