UNDER_OVERSPEED_LOGIC

Published:2009/7/7 1:57:00 Author:May | From:SeekIC

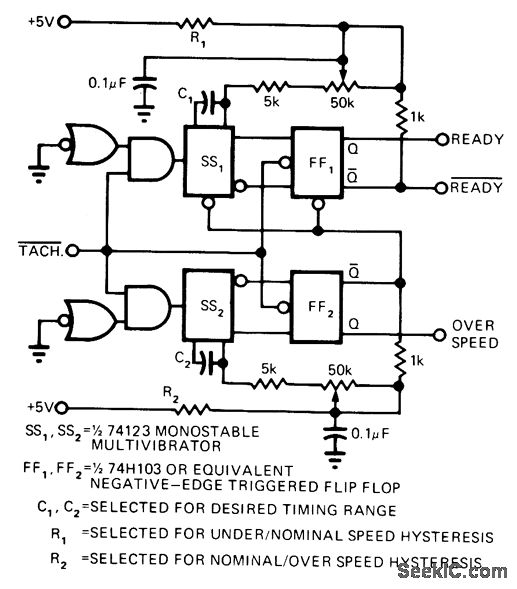

Provides signal (READY output high} only when tachometer pulses from motor are within specific upper and lower limits. Also provides over speed output signal when upper limit has been exceeded. Single-action triggering eliminates instability at decision point. Article covers circuit operation in detail and gives timing diagram.-W. Bleher, Circuit Indicates Logic Ready, EDN Magazine, March 5, 1974, p 72 and 74.
