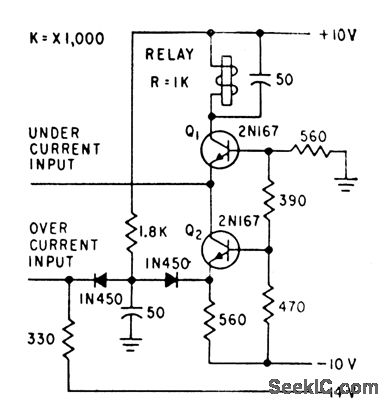

Guards against improper operation of control amplifier in nucelor reator scram system.If rod currents vary beyond predetermined limits circuit initiates reactor scram.Either transistor may open relay coil circuit.-E.J.Wade and D.S.Davidson.How Transistor Circuits Protect Atomic Reactors,Electronics.31:29.p73-75.
