UM91260A/C microcomputer single chip dialing integrated circuit diagram

Published:2011/5/5 8:27:00 Author:Nicole | Keyword: microcomputer, single chip dialing | From:SeekIC

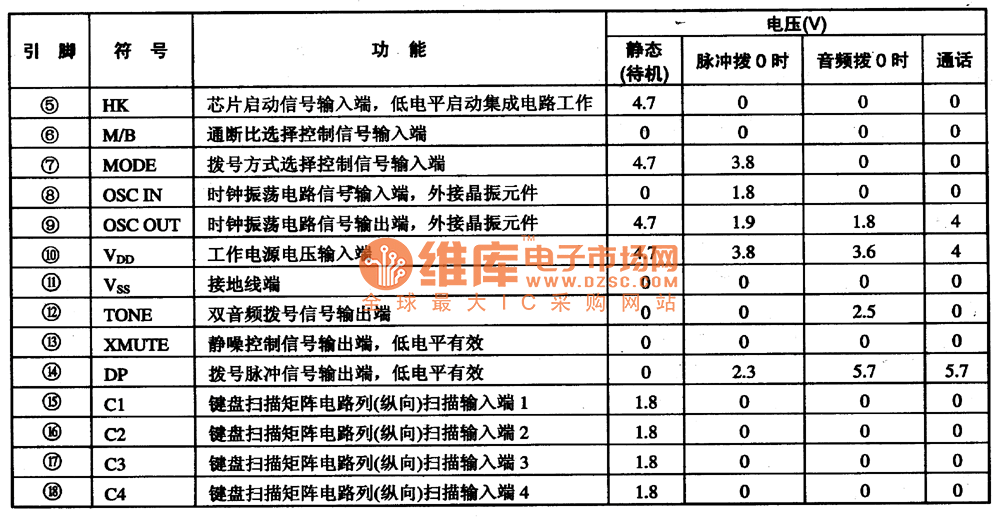

UM91260A、UM91260C are microcomputer dialing integrated circuit, as dialing circuit, it is used in communication equipment. UM91260A、UM91260C have the function of: re-dial 32 bits numbers(double audio type is 31 bits), store 10 16-bit numbers, the integrated circuit's pin function and data are shown in the excel 1-1.
