ULTRASONIC_SOUND_SOURCE

Published:2009/7/11 2:04:00 Author:May | From:SeekIC

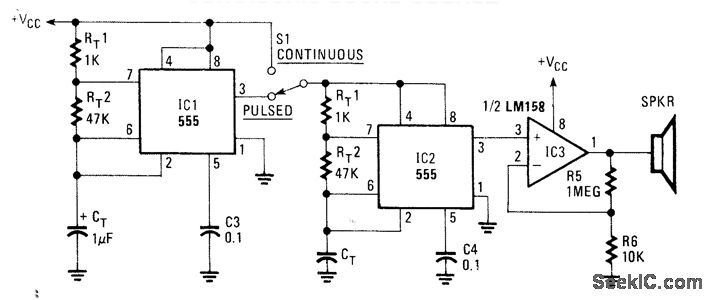

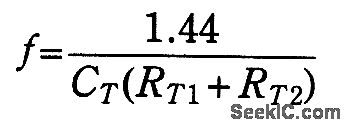

Using two NE555 timer IC devices, this circuit generates either pulsed or continuous ultrasonic signals. The sound frequency is:The values of CT for both pulse rate and ultrasonic frequencies can be calculated this way. SPKR is a small hi-ft tweeter.
