Typical application circuit diagram of 14-6TDA2822M manifold

Published:2011/9/16 1:31:00 Author:Ecco | Keyword: Typical application , manifold | From:SeekIC

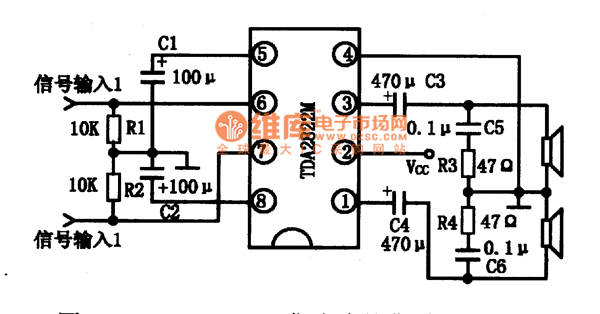

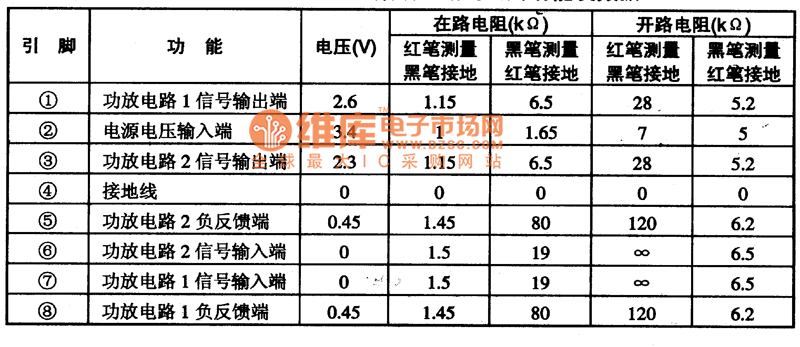

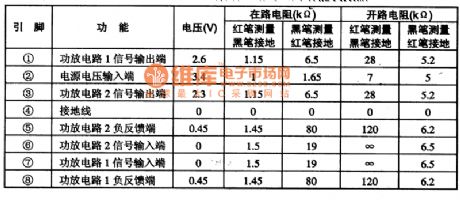

Figure shows the TDA2822M internal manifold block diagram (Table 16). Table 14-6 is the TDA2822M IC's pin functions and data. 2. The typical application circuit of TDA2822M manifold is the same with TDA2822M, and it is shown in Figure 6.
