Three time base window circuit

Published:2011/3/31 22:37:00 Author:may | Keyword: time base window | From:SeekIC

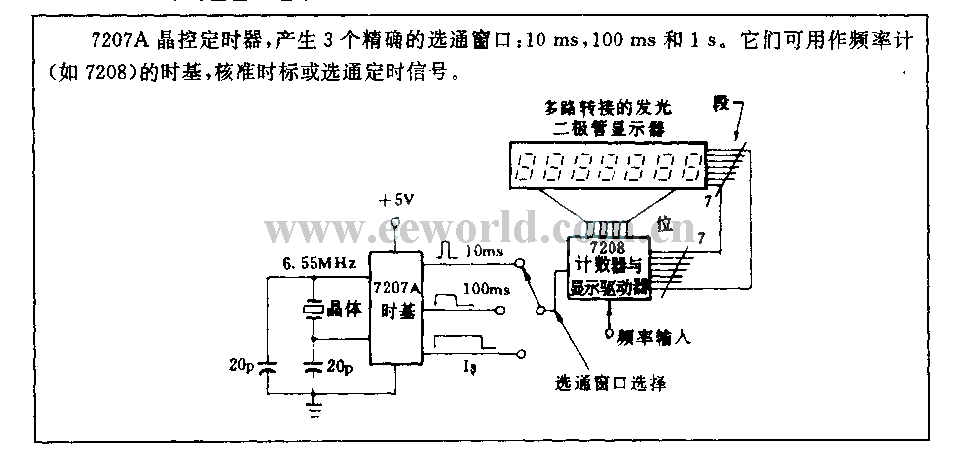

7207A crystal controlled timer, generate three precise gating window: 10ms, 100ms and 1s. They can use as time base of cymometer ( such as 7208) , sanction time scale or gating timmer signal.
