Three_input_AND_gate

Published:2009/7/24 9:39:00 Author:Jessie | From:SeekIC

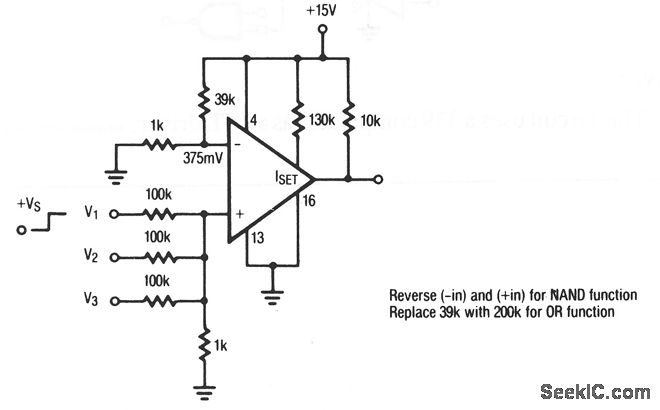

This circuit uses an LP165/365 comparator as a 3-input AND gate. The circuit can be converted to NAND or OR, as shown. Raytheon Linear Integrated Circuits, 1989, p. 5-43.
