The typical application circuit diagram of PT2124 IC

Published:2011/5/9 3:42:00 Author:Ecco | Keyword: typical application circuit , IC | From:SeekIC

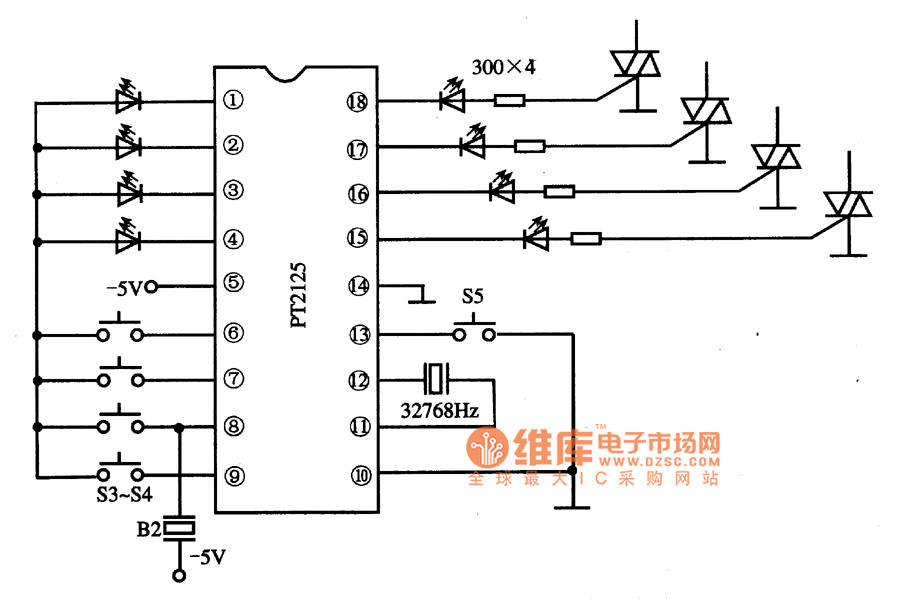

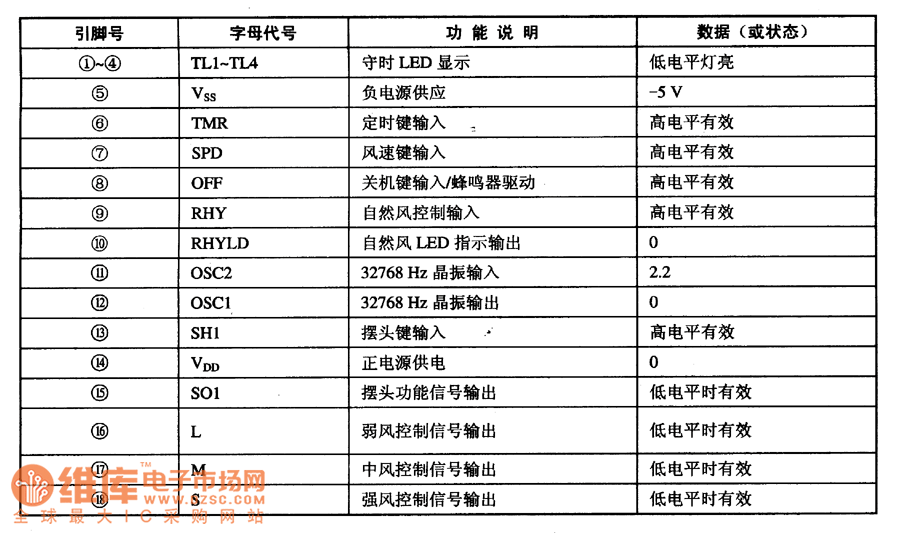

PT2125 is the fan monolithic microcomputer integrated circuit, which is widely used in various types of program control circuits. PT2125 IC uses the 18-pin dual in-line package, the pin functions and data are listed in table, it usually forms remote control fan system with the BA5101/A5201, the typical application circuit is shown as teh chart.
