The typical application circuit diagram of LC7480 IC

Published:2011/5/6 3:33:00 Author:Ecco | Keyword: typical application circuit , IC | From:SeekIC

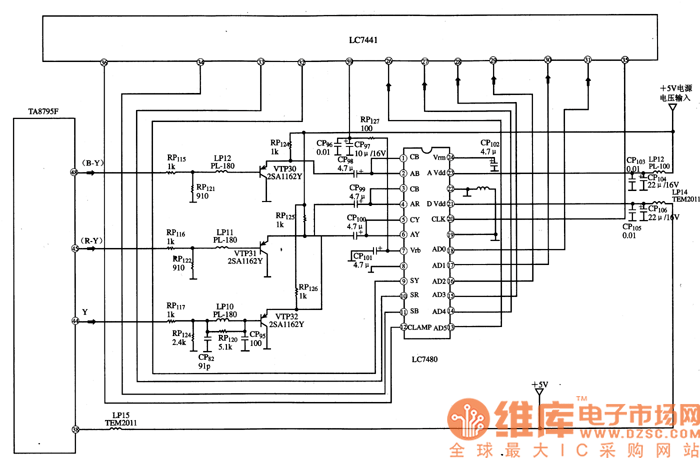

The typical application circuit The typical application circuit of LC7480 IC using in Changhong NC-3 series of picture in picture large screen color TV is shown as the chart. Tip: LC7480 IC is used for the sub-storage compression of Y, (R-Y), (B-Y) into serial Y (R-Y), (B-Y) screen digital signal. The typical application circuit diagram of LC7480 IC is shown as the chart.
