The typical application circuit diagram of LA1260 IC

Published:2011/5/5 1:14:00 Author:Ecco | Keyword: typical application circuit , IC | From:SeekIC

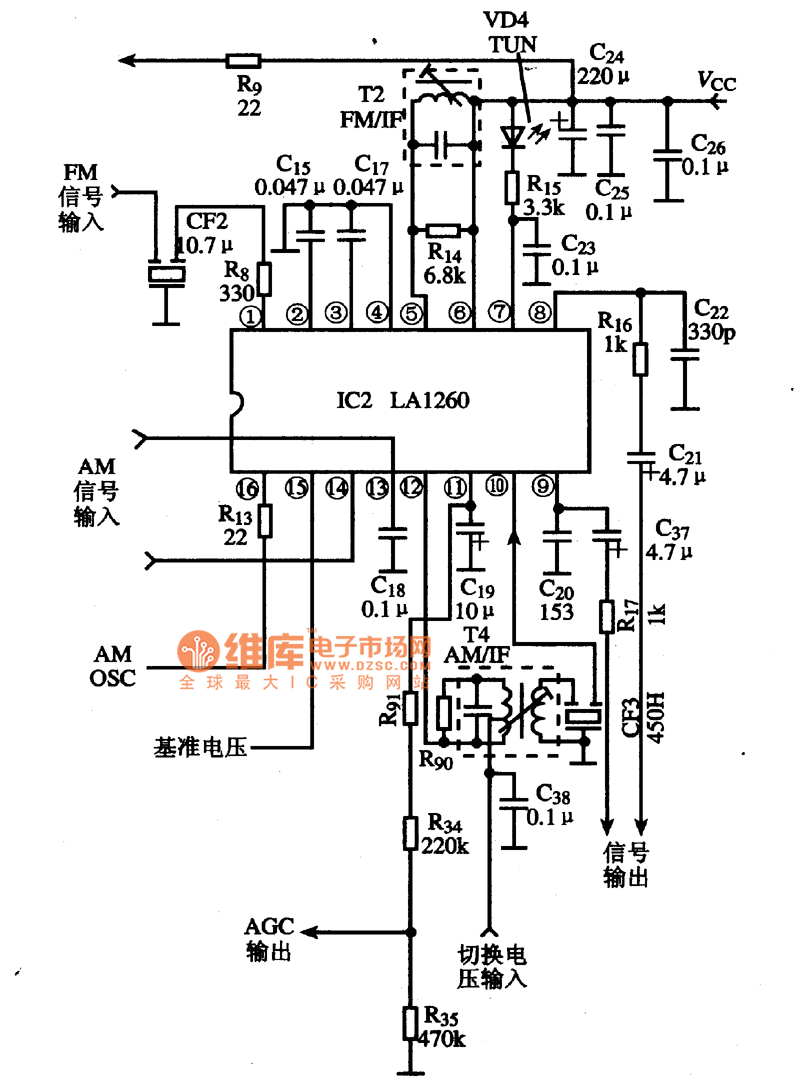

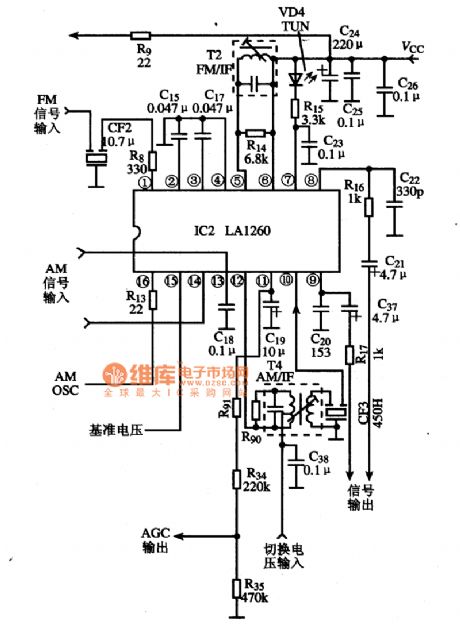

The typical application circuit The typical application circuit of radio composed of LA1260 IC is shown as the chart. Tip: the pin of LAl260 IC is the input end of AM / FM band switching control signal, when the pin is floating, LAl260 is in the FM working state, when the feet connects to the power supply, it is in the AM state. AM / FM switch exception should check the pin voltage firstly. The typical application circuit diagram of LA1260 IC is shown as the chart.
