The structure schematic of antimonide indium Hall elements

Published:2012/8/16 22:32:00 Author:Ecco | Keyword: structure schematic, antimonide indium, Hall elements | From:SeekIC

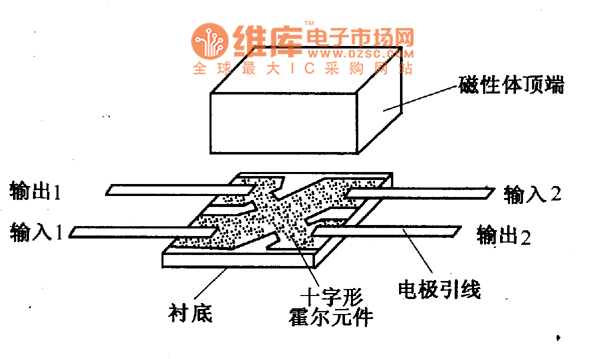

The figure shows the structure of antimonide indium Hall elements made by a sputtering process, and it consists of substrate, cross-shaped Hall element, electrode lead and the top of the magnetic body. In the leads of cross Hall element's four ends, one pair are current input ends, the other are the Hall voltage output ends. The top of the magnetic body is set in order to concentrate the magnetic field lines and the element sensitivity, and its volume of components is larger, the output sensitivity is higher.
