The series circuit with many TcA965

Published:2012/9/23 22:51:00 Author:Ecco | Keyword: series circuit | From:SeekIC

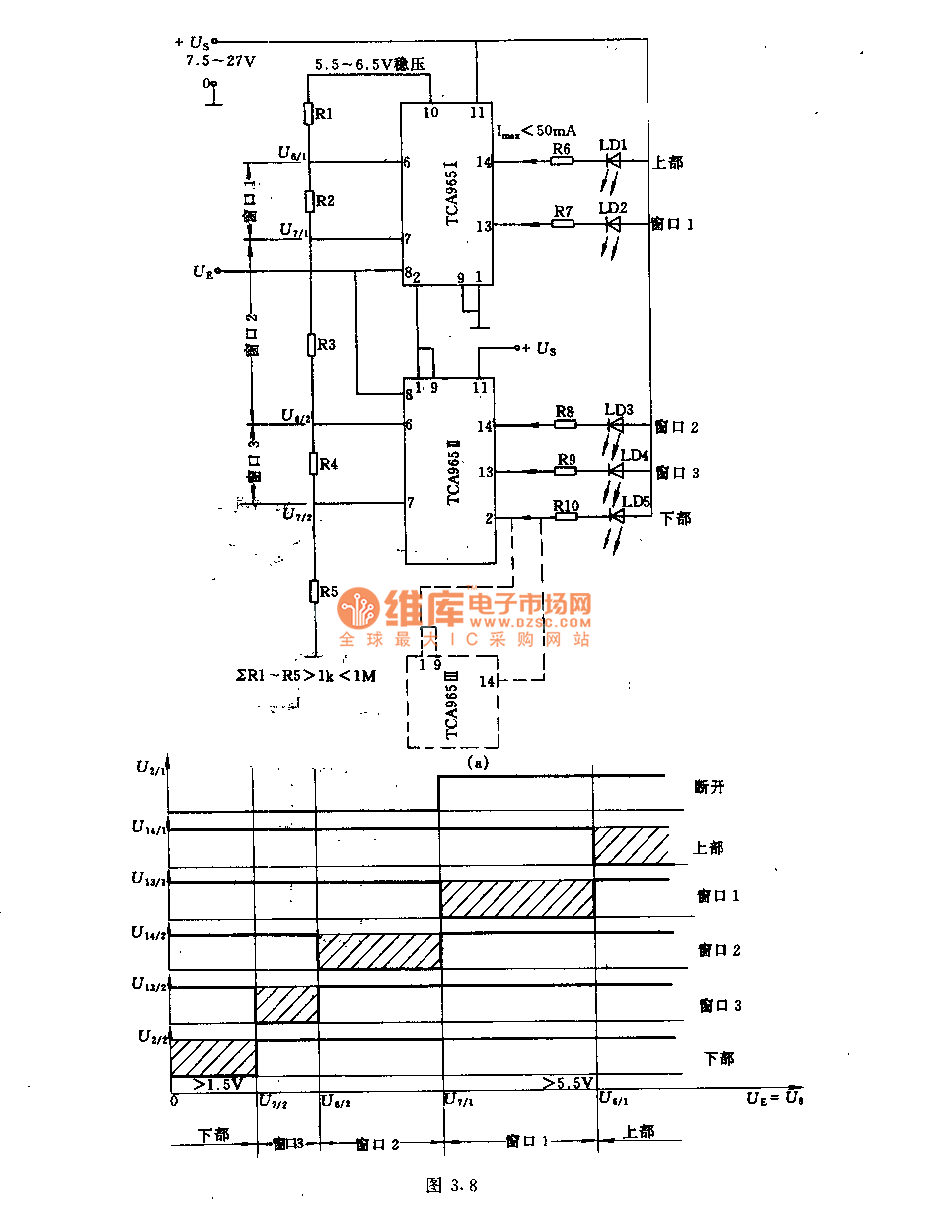

In many measuring instruments, they often require more than three of measuring ranges, and they are able to display and monitor. As shown in Figure, the series circuit composed of many window discriminators can be used. There are five ranges, i.e., three windows and an upper and a lower. They are adjusted through R1 ~ R5 dividers. Input signal UE is sent from pin 8. Figure b illustrates the pulse waveform. In actual applications, it can be used by five TCA965 connected in series.
