The pulse generator circuit composed of CD4011

Published:2011/8/6 21:24:00 Author:nelly | Keyword: pulse generator | From:SeekIC

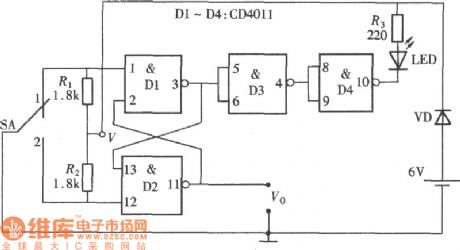

As shown in the picture, the logic pulse generator can transmit the negative or positive logic pulse, according to the need. This circuit is composed of a four-two input end and the non gate CD4011, among which D1 and D2 form a RS trigger pulse, and D3 and D4 are used as the inverters. It will be isolated with the D1 output end and drive a LED, thus the logic state of the output pulse can be indicated.
