The multiple warning system circuit of Buick-Century

Published:2011/5/17 21:09:00 Author:Borg | Keyword: warning system, Buick-Century | From:SeekIC

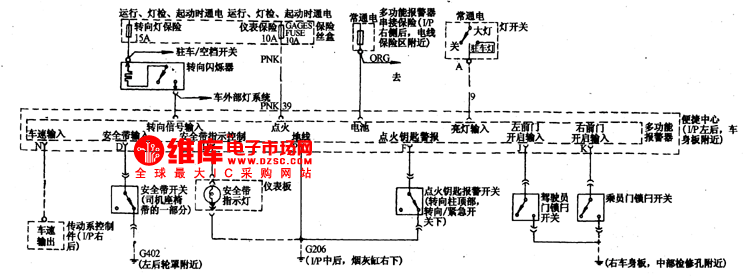

The multiple warning system is fixed on the left-rear side of the I/p, which is near the body panel, it can buzz or flash when in dangerous or abnormal conditions.When the speed is too high, seat belt is not fixed, the igniting key is in when the car is off, parking lamps or large lights are on, car doors are not closed well and steering indicator is in, etc, the system will warn the driver in time. The input signals are all kinds of switch and signal voltages; the power supply comes from general fuse(15A, behind the instrument plate).
