The microcontroller

Published:2013/7/9 3:16:00 Author:muriel | Keyword: The microcontroller | From:SeekIC

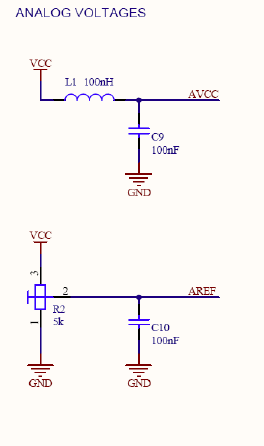

The microcontroller has built-in 10bits AD converter. On the board is LC filter for power supply of this ADC. You can use internal or external reference. The rotary trimming resistor R2 is connected to Aref input for playing with the external reference.
