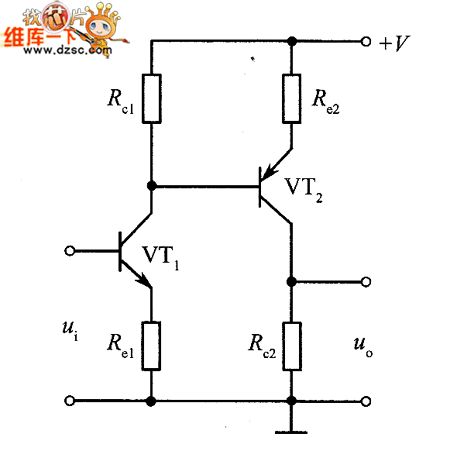

The level shift circuit diagram completed by PNP transistors

Published:2012/8/12 21:40:00 Author:Ecco | Keyword: level shift, PNP transistor | From:SeekIC

PNP transistor forms common-emitter amplifier circuit to ensure that the transistors work in the enlarged area, and the collector level must be less than the base level. So, in the NPN multi-stage DC amplifier circuit, inserting a PNP transistor common-emitter amplifier circuit can complete the displacement of DC level and zoom function.
