The internal circuit of M6M80014P

Published:2011/6/6 0:02:00 Author:Seven | Keyword: internal circuit | From:SeekIC

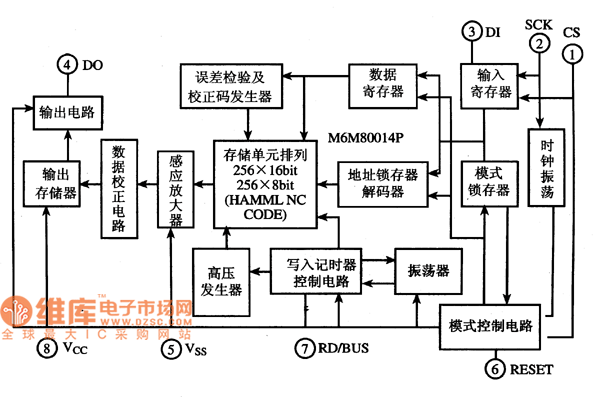

Function featuresM6M80014P includes the storage matrix, register, address latch/decoder, module control circuit, and high voltage generator, etc. Its internal circuit are shown in the figure. Figure: the internal circuit of M6M80014P
