The internal block circuit diagram of LA5521 IC

Published:2011/6/23 2:44:00 Author:Ecco | Keyword: internal block , IC | From:SeekIC

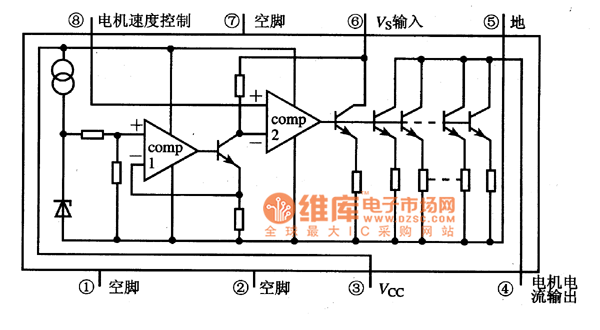

The features of functionsLA5521 IC includes voltage reference circuit, the motor speed control circuit, differential amplifier circuit and other ancillary circuitry. The block diagram of the circuit is shown as the chart.
