The interface circuit diagram between MSP430F413 and MFRC522

Published:2011/6/3 2:15:00 Author:Lucas | Keyword: interface | From:SeekIC

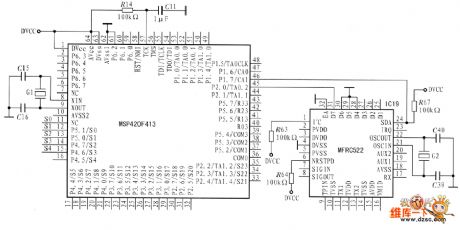

It sets theMSP430F413 as the example, and it uses I2C interfaces. The circuit is shown in Fig. Because the SCM MSP430F413 has no the port line with interface function being similar to I2C,it usesI / 0 simulation I2C timing sequence.
