The ground connections of Buick-Century (see Figure 1,2,3)

Published:2011/5/18 3:22:00 Author:Borg | Keyword: ground connections, Buick-Century | From:SeekIC



The ground connections of Buick-Century (see Figure 1,2,3)
The ground connections of Buick-Century (see Figure 1,2,3)
The ground connections of Buick-Century (see Figure 1,2,3)

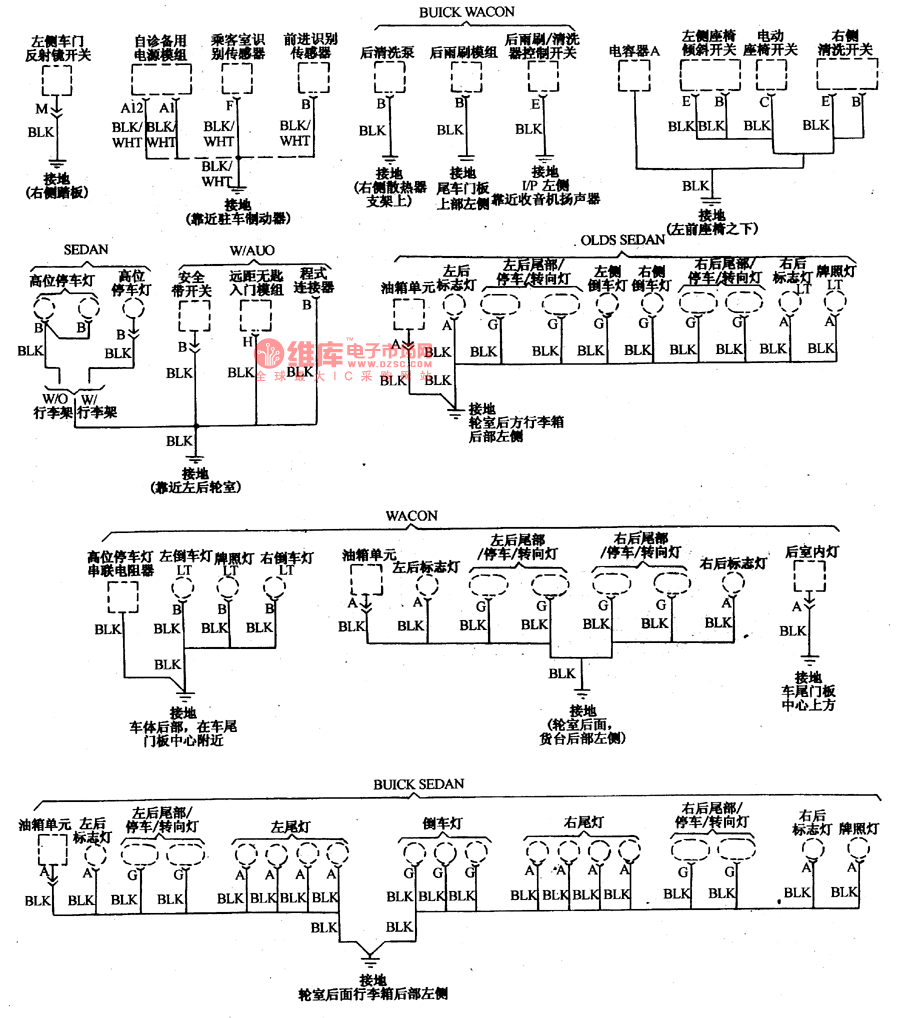

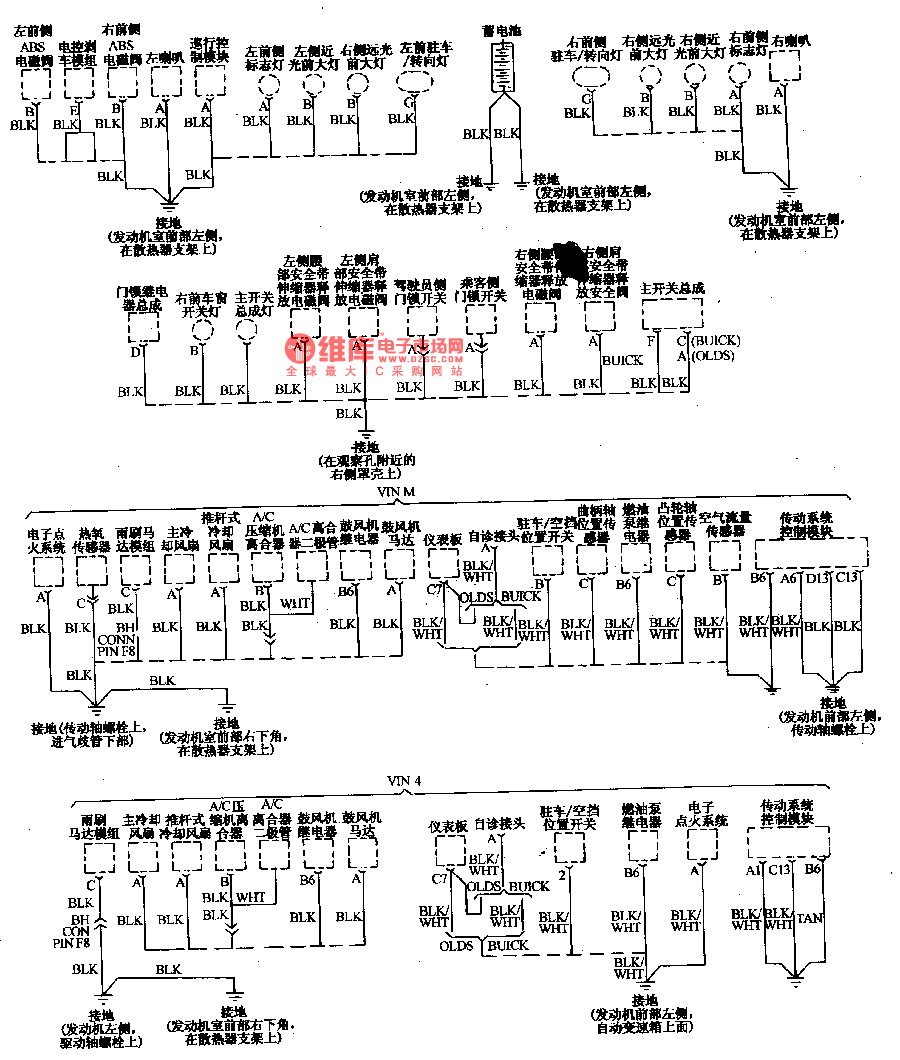

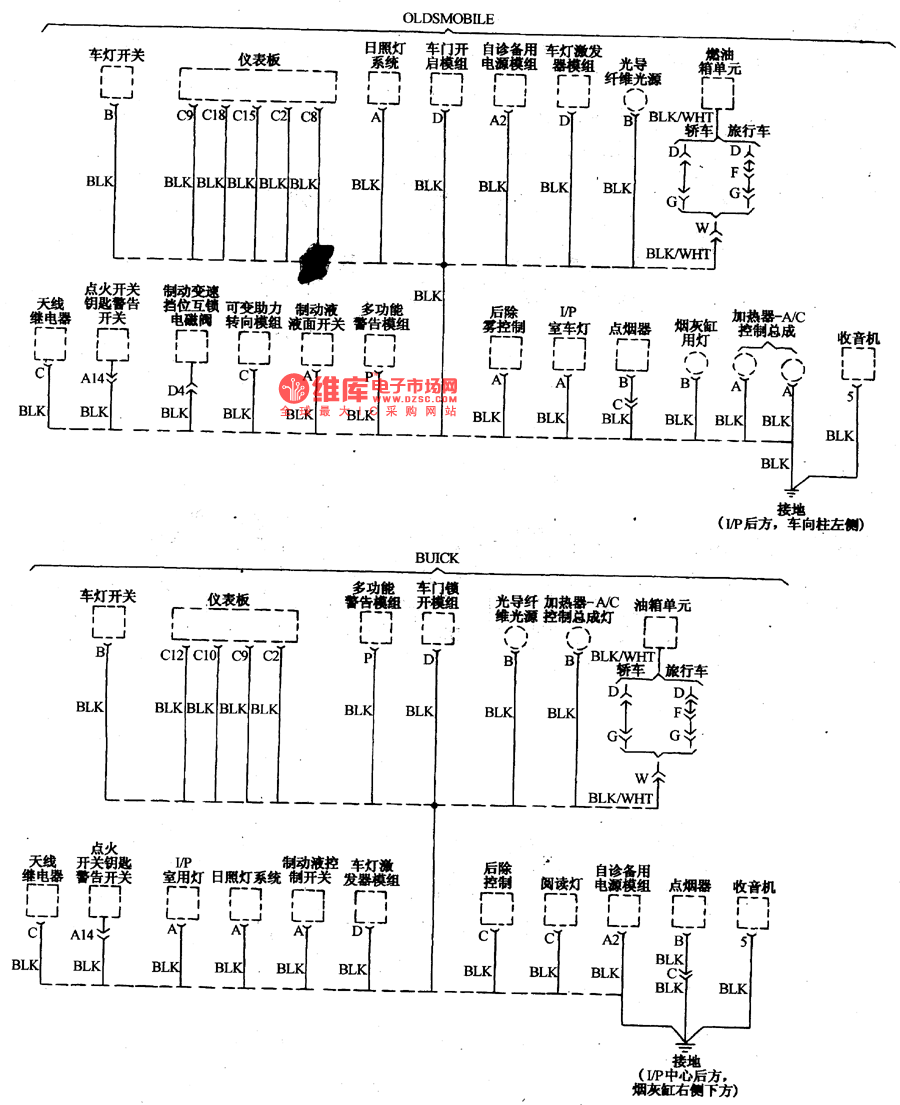

These years, it is the common point of importing car circuits to explicitly describe the ground connections of electric equipment, as the car electric equipment is fixed throughout the car, and many general parts are fixed on metal slides and shaking engines or brackets, so its not dependable to connect in a single line. It is necessary to link all the ground connections into a reliable net with the negative point of the battery, which is also convenient to detect partial faults. The following shows the chief ground connections: The ground connections of Buick-Century (1)
