The golf AUM motor circuit

Published:2011/7/4 4:25:00 Author:Seven | Keyword: golf, AUM motor | From:SeekIC

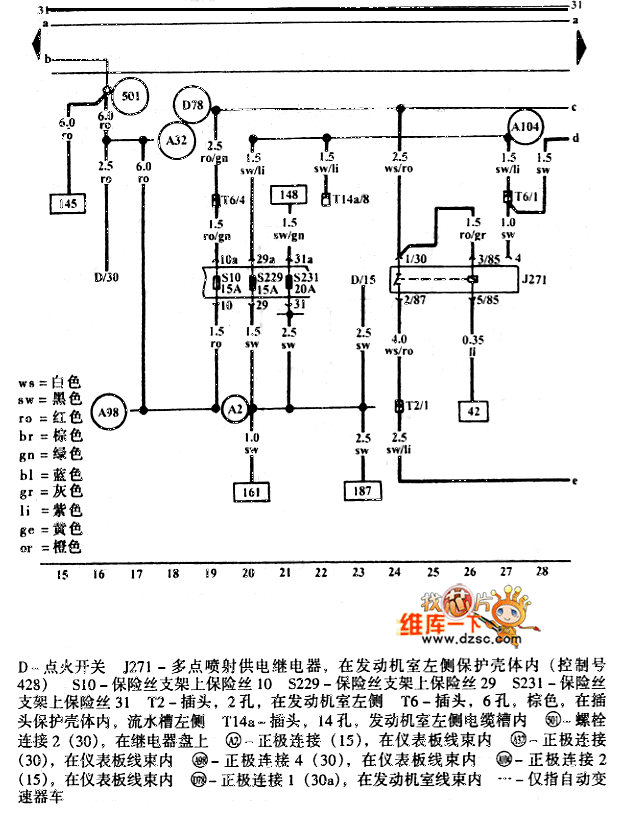

The golf AUM motor circuit is shown as above. D-lighting switch; J271-multiple injection power supply relay, which is in the protecion shell on the left side of the engine room(the control No. is 428);S10-fuse on the holder 10; S229-fuse on the holder 29; S231-fuse on the holder 31; T2-plug, 2 holes, on the left side of the engine room; T6-plug,6 holes,brown, in the plug protection shell, on the left side of the flow tank; T14a-plug, 14 holes, on the left side of the wire way in the engine room
