The fuse fusing instruction circuit diagram

Published:2011/8/3 2:35:00 Author:Ecco | Keyword: fuse fusing instruction | From:SeekIC

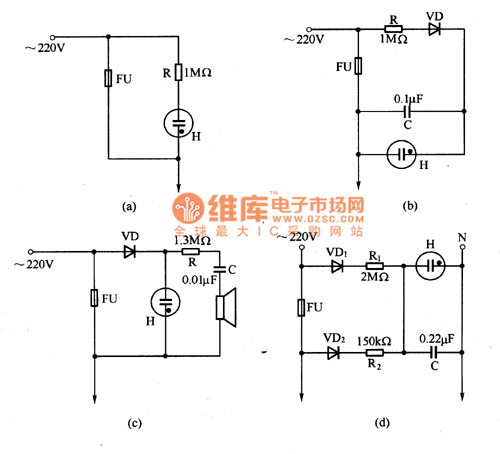

The fuse fusing instruction circuit is shown in Figure 1, and it is very simple. Figure (a) shows the immediate light indicator circuit after fusing; figure (b) shows the instructions circuit, which can flash after fusing; figure (c) shows the circuit, which can issue the sound and light; figure (d) shows the circuit, in which the neon tube issues ligh before fusing and flashes after fusing.
