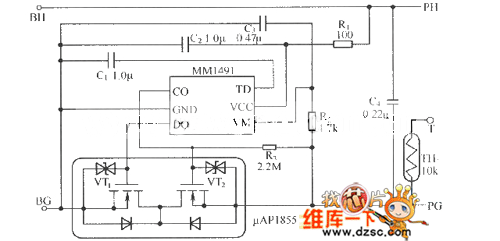

The example circuit of the COB component

Published:2011/6/28 19:01:00 Author:TaoXi | Keyword: components, COB component | From:SeekIC

The COB(Chip On Board) component uses the circuit structure of the single lithium-ion battery protection component as the foundation, it is one kind of circuit form that encapsulates all of the components with the resin. The features of it are as shown: 1.Small volume and light weight. There is no need to install any metal wiring rack if the package has the integrated protection circuit and the naked chip FET component. 2.Water resisting property and insulating quality. Because the circuit component is sealed with the resin, so it has the water resisting property. 3. Reduces the fault in the secondary installation. The MM1491 is the single lithium-ion battery protection integrated circuit.
